Quick Details

  • Condition: New
  • Type: Hollow Block Making Machine
  • Brick Raw Material: Cement
  • Processing: Brick Production Line
  • Method: Zero Gravity Hybrid Mixer
  • Automatic: Yes
  • Capacity: 2.1m³
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: TELE MACHINE
  • Model Number: mixing machine TL-JBJ-N150-2CB
  • Voltage: 380w
  • Power: 60.5 kw
  • Dimension(L*W*H): 4,405 x 2,016 x 1,841 (mm)
  • Warranty: 1year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Color: white or others
  • Net weight: 6.150kg
  • type: mixer TL-JBJ-N150-2CB
  • woprking / max loading capacity: 1.4/2.1 m³
  • mixing barrel: 1220*1850 mm
  • product 1: cement board
  • product 2: cement hoillow brick
  • product 3: concrete hollow brick
  • product 4: concrete pannel/ solid brick
  • product 5: Ecp / Fiber board

Packaging & Delivery

Packaging Details mixing machine TL-JBJ-N150-2CB
Adopts the package of bottom wooden frame, bolt reinforcement supporting, and outer waterproof film for the machines; and wooden trunk for other parts or the wear parts.
Delivery Time according to contrct

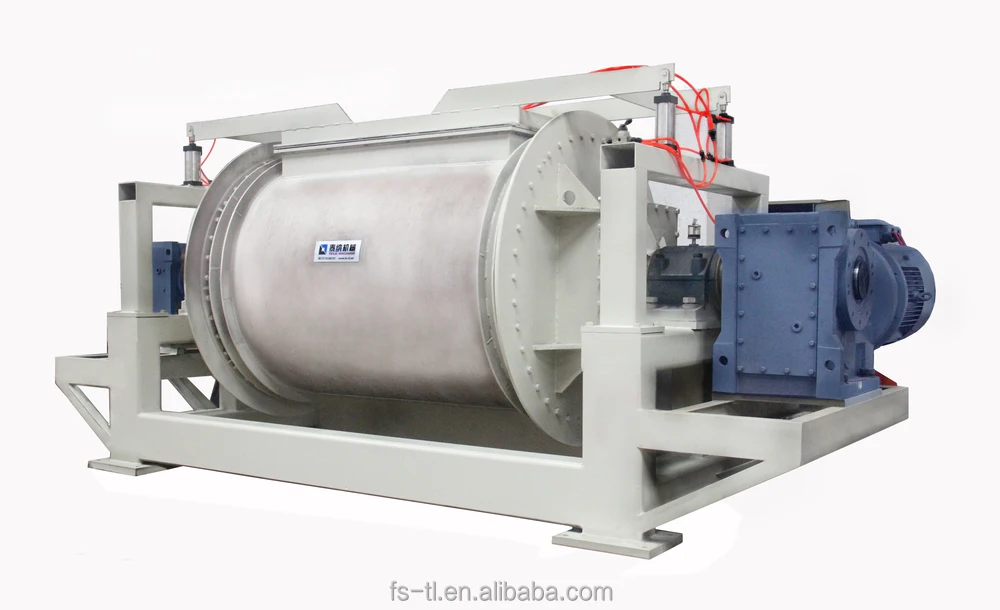

Extrusion Fiber cement mixing machine  TL-JBJ-N150-2CB



  Zero Gravity Efficient Hybrid Mixer for concrete or cement bricks or boardsType TL-JBJ-NØ150-2CB





Product Description




Major Technical Parameters of Zero Gravity Efficient Hybrid Mixer Type TL-JBJ-NØ150-2CB





Dimension L x W x H (mm)



Working / Max. Loading Capacity (m3)



Mixing Barrel (Inner Diameter x Length) (mm)



Motor Power (k w)



Net Weight (kg)

4,405 x 2,016 x 1,841

1.4  /  2.1

1220 x 1,850

60.5

≈  6,150

Features of This Type

cially made for the mixing process in ECP production line of extrusion fiber cement products or some other kind of products made of special materials, it can make each component between of variety raw material well mixed, uniformly distributed and Cooling with mixture material natural remaining & effective no leftovers output, to meet the requirement of subsequent extrusion forming process, and guarantee the final product’s quality. (Its mixing speeds or other parameters are adjustable via VFD)

2. According to the special process technologies & requirements like above cement or binding material contained production which materials may easily be hydration heat or timing solidified, or easily to attach to the inner wall of the mixing barrel, this mixer adopts the unique high strength gearbox of symmetrical structured and with zero gravity efficient & powerful mixing force, automatic control for the top door switch open & close for feeding device, as well as 180°angle rotation unloading function etc, ensure efficient automation work of stability, durability, high quality & strong technological advantages, which input and output of raw material without loss, the prepared mixture can be 100% output to the next working process after each batch mixing work.





















company introduction







Our production line









Our Services



TELE MACHINE can make the products involving clay or ceramic tiles & bricks, especially focus on the special and new one, including roofing tiles, ceramic plate, terracotta panel, split tiles, clay bricks, hollow bricks, split rock, special-shaped ceramic, artificial stone plate, cubic ceramic, paving brick etc. And its recent development of unburned technology of energy saving & conservation and environmental protection green new material equipment, such as green hollow extrusion plank production equipment etc.







Company Information



Foshan Tech-Leader Machinery Equipment Co., Ltd. with the brand name of TELE MACHINE is located in the beautiful & famous China ceramic city -- Foshan, Guangdong province. Since its establishment, TELE MACHINE has been committed to the research & development & manufacturing of the process machines for new varieties tiles& bricks of clay or ceramic building materials. Haven nearly 20 years of industry experiences and won 70 patents in the field of intellectual property rights of technology, we are the State High-Tech Enterprises, Guangdong Civil-Run Science and Technology Enterprises, Foshan Intellectual Property Right Pilot

Enterprises and one of the first batch Guangdong Low-Carbon Pilot Enterprises in Foshan. Focus on supplying tiles & bricks process machines



We focus on offering machine lines of good solution

for roof tile / split tile / hollow bricks etc.

We want to do better with you.
